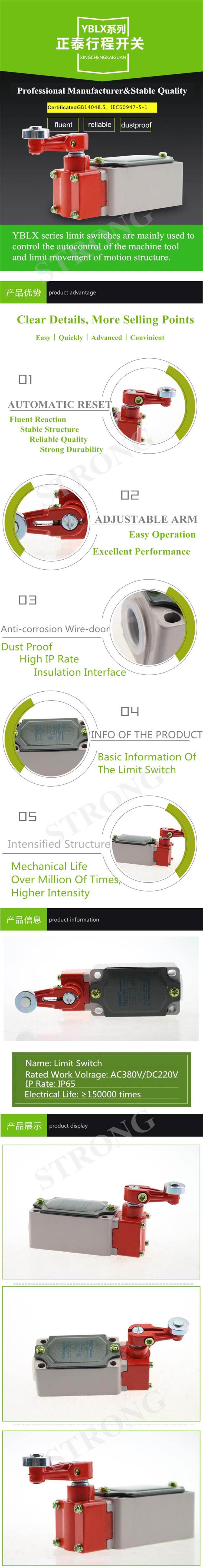

Travel Switch
- Mobile: 008613331906936
- Whatsapp: +8618358312481
- E-mail: admin@stronghoist.com
1. Can be installed at any angle
2. Must be installed on the area without shock, shake and rain and snow
3. Rated impulse withstand voltage is 6kV
Trip switch, position switch (also known as limit switch) is a commonly used small current master electrical appliances. The use of the production of mechanical moving parts of the collision to make its contact to achieve the opening or breaking control circuit, to achieve a certain control purposes. Typically, such switches are used to limit the position or stroke of mechanical movement, so that the movement of machinery according to a certain position or stroke automatically stop, reverse movement, variable speed movement or automatic round-trip movement.
Suitable for AC 50Hz-60Hz, rated working voltage to 380V and DC operating voltage 220V industrial control circuit, as a magnetic starter, contactors, relays and other electrical control of the line
1, The series of all the buttons for the installation hole Φ22mm
2, Metal button with anti-channeling action head. The button can not be removed from the front.
3, All metal contacts have a dual role of switching circuit and self-cleaning, in the low voltage and small current {5v, 5mv} can still ensure the reliability of contact with the touch.
4, Normally open and normally closed contact with each other independent, when used as needed combination. Easy to replace.
5, Widely used AC 50Hz, rated working voltage 0 ~ 380v and DC operating voltage 0 ~ 220v of industrial control circuit, as a magnetic starter, contactors, relays and other electrical circuit control purposes.
6, The standard use of the environment:
Ambient temperature: -25 ~ +55 (no freezing)
Operating Humidity: 45 ~ 85% RH (no condensation)
Contact resistance: ≤50mΩ
Insulation resistance: ≥ 100Ω
Maximum withstand voltage: 3000 volts, AC 50 Hz resistance
Oscillation: 50 Hz, amplitude about 1mm
Impact resistance: greater than 10m / s2 (about 10G
Life machinery: (1 million); electrical: (more than 30,000 times)
Pollution level: Level 3
Protection class: IP40
