Xiaohu Backgear
Xiaohu Backgear
  • Specification
Package Wooden case Weight(KG) 3.54
Specification Surface treatment
Made of high-quality carbon structural steel Black coating
Galvanized
Overall dimension(MM)
Outer diameter/D Ø125 Step diameter/d Ø45
Assemble total height/L 75 Eccentric bushing thickness/h 25
backgear assemble height /H 52 Eccentric bushing step height/t 12
Thickness/S 40 Eccentric bushing step diameter/d1 Ø60
Bolt hole/Ø Ø25 Eccentric distance/P 3
Step height 10 Shim diameter/d2 Ø70

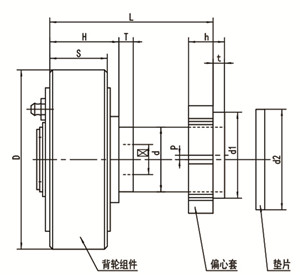

Dimension drawing Description
Used in Zhonglian Zhongke hoist



Construction Hoist Parts Guide Roller Mast Section Roller
High quality construction hoist spare parts
High quality GJJ, BAODA material hoist spare parts
