GJJ Backgear
- Mobile: 008613331906936
- Whatsapp: +8618358312481
- E-mail: admin@stronghoist.com
| Package | Wooden case | Weight(KG) | 3.3 | |
| Specification | Surface treatment | |||
| Made of high-quality carbon structural steel | Black coating | |||
| Galvanized | ||||
| Overall dimension(MM) | ||||
| Outer diameter/D | Ø125 | Step diameter/d | Ø45 | |
| Assemble total height/L | 75 | Eccentric bushing thickness/h | 23 | |
| backgear assemble height /H | 62 | Eccentric bushing step height/t | 10 | |
| Thickness/S | 40 | Eccentric bushing step diameter/d1 | Ø60 | |
| Bolt hole/Ø | Ø21 | Eccentric distance/P | 3 | |
| Step height | 10 | Shim diameter/d2 | Ø54 | |

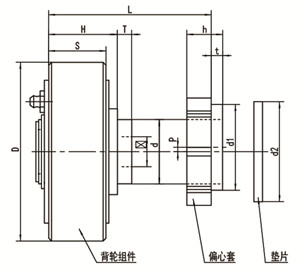

| Dimension drawing | Description | |||
 |
Used in GJJ hoist | |||
Construction Hoist Parts Guide Roller Mast Section Roller
High quality construction hoist spare parts
High quality GJJ, BAODA material hoist spare parts
