Package |
Wooden case |
Weight(KG) |
3.4 |
Specification |
Surface treatment |
made of high-quality carbon structural steel |
Black coating |
Galvanized |
Overall dimension(MM) |
Outer diameter/D |
Ø125 |
Step height/T |
30 |
Assemble total height/L |
50 |
Step diameter/d |
Ø45 |
backgear assemble height /H |
50 |
Eccentric distance/P |
4 |
Thickness/S |
38 |
Shim diameter/d2 |
Ø70 |
Bolt hole/Ø |
Ø21 |
|
|

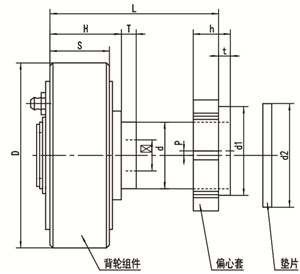

Dimension drawing |
Description |
|
Used in Baoda construction hoist |
Construction Hoist Parts Guide Roller Mast Section Roller
High quality construction hoist spare parts
High quality GJJ, BAODA material hoist spare parts
