Huba Roller
- Mobile: 008613331906936
- Whatsapp: +8618358312481
- E-mail: admin@stronghoist.com
| Package | Wooden case | Weight(KG) | 2.59 | |
| Specification | Surface treatment | |||
| With back cover plate | Black coating | |||
| Galvanized | ||||
| Overall dimension(MM) | ||||
| Major diameter/D | Ø95 | Step height/h | 4 | |
| Minor diameter/d | Ø78 | Assemble height/L | 37 | |
| Thickness/H | 66 | Eccentricity/P | 3.5 | |
| Arc/R | R45 | External thread/M | M20 | |
| Step outside diameter/Ø | Ø36 | Thread length/T | 22 | |

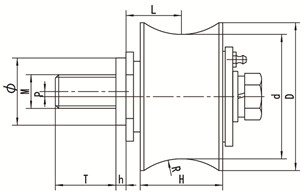

| Dimension drawing | Description | |||
 |
Used in Zhejiang Huba hoist |
|||
| Package | Wooden case | Weight(KG) | 2.59 | |
| Specification | Surface treatment | |||
| With back cover plate | Black coating | |||
| Galvanized | ||||
| Overall dimension(MM) | ||||
| Major diameter/D | Ø95 | Step height/h | 4 | |
| Minor diameter/d | Ø78 | Assemble height/L | 37 | |
| Thickness/H | 66 | Eccentricity/P | 3.5 | |
| Arc/R | R45 | External thread/M | M20 | |
| Step outside diameter/Ø | Ø36 | Thread length/T | 22 | |
| Dimension drawing | Description | |||
|
|
Used in Zhejiang Huba hoist | |||
Construction Hoist Parts Guide Roller Mast Section Roller
High quality construction hoist spare parts
High quality GJJ, BAODA material hoist spare parts
