6409 Roller
- Mobile: 008613331906936
- Whatsapp: +8618358312481
- E-mail: admin@stronghoist.com
| Package | Wooden case | Weight(KG) | 1.77 | |
| Specification | Surface treatment | |||
| Adopt hexagon design to make adjusting easy | Black coating | |||
| Galvanized | ||||
| Overall dimension(MM) | ||||
| Major diameter/D | Ø88 | Step height/h | 5 | |
| Minor diameter/d | Ø74 | Assemble height/L | 29.5-34.5(5) | |
| Thickness/H | 49 | Eccentricity/P | 3 | |
| Arc/R | R39 | External thread/M | M20 | |
| Step outside diameter/Ø | Ø40 | Thread length/T | 38 | |

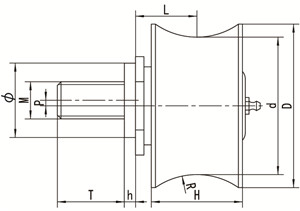

| Dimension drawing | Description | |||
 |
Used in 6094 factory’s hoist |
|||
Construction Hoist Parts Guide Roller Mast Section Roller
High quality construction hoist spare parts
High quality GJJ, BAODA material hoist spare parts
