Huayu 76 Short-axle Roller
- Mobile: 008613331906936
- Whatsapp: +8618358312481
- E-mail: admin@stronghoist.com
| Package | Wooden case | Weight(KG) | 2.14 | |
| Specification | Surface treatment | |||
|
1.There’s dust cap on nozzle 2.With dust cover |
Black coating | |||
| Galvanized | ||||
| Overall dimension(MM) | ||||
| Major diameter/D | Ø94 | Step height/h | 14 | |
| Minor diameter/d | Ø78 | Assemble height/L | 32-35(3) | |
| Thickness/H | 54 | Eccentricity/P | 4 | |
| Arc/R | R39 | External thread/M | M22 | |
| Step outside diameter/Ø | Ø25 | Thread length/T | 34 | |

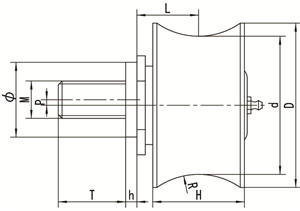

| Dimension drawing | Description | |||
 |
Used in Zhejiang Huayu hoist with 650 mast section | |||
Construction Hoist Parts Guide Roller Mast Section Roller
High quality construction hoist spare parts
High quality GJJ, BAODA material hoist spare parts
