Jianglu 89 Through Roller
- Mobile: 008613331906936
- Whatsapp: +8618358312481
- E-mail: admin@stronghoist.com
| Package | Wooden case | Weight(KG) | 2.1 | |
| Specification | Surface treatment | |||
|
the center of roller is through. The back cover plate is thicker |
Black coating | |||
| Galvanized | ||||
| Overall dimension(MM) | ||||
| Outer diameter/D | Ø93 | Step height/h | 5 | |
| Inner diameter/d | Ø81 | Assemble height/L | 36.5 | |
| Thickness/H | 53 | Eccentric distance/P | 2.5 | |
| Arc/R | R45 | Hole diameter/A | Ø17 | |
| Step outer diameter/Ø | Ø40 | |||

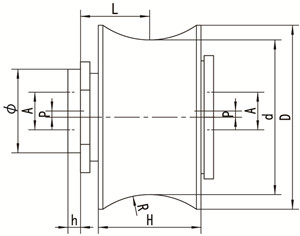

| Dimension drawing | Description | |||
 |
Used in Hunan Jianglu hoist with 800 mast section | |||
Construction Hoist Parts Guide Roller Mast Section Roller
High quality construction hoist spare parts
High quality GJJ, BAODA material hoist spare parts
