| Package | Wooden case | Weight(KG) | 1.63 | |
| Specification | Surface treatment | |||
| There’s dust cap on nozzle | Black coating | |||
| Galvanized | ||||

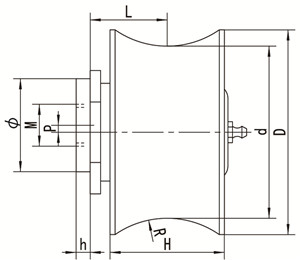

| Overall dimension(MM) | ||||
| Major diameter/D | Ø88 | Step height/h | 6 | |
| Minor diameter/d | Ø74 | Assemble height/L | 30-34(4) | |
| Thickness/H | 50 | Eccentricity/P | 3 | |
| Arc/R | R45 | Internal thread/M | M18 | |
| Step outside diameter/Ø | Ø40 | |||
| Dimension drawing | Description | |||
 |
Used in Jianghan new hoist with 800 mast section | |||
Construction Hoist Parts Guide Roller Mast Section Roller
High quality construction hoist spare parts
High quality GJJ, BAODA material hoist spare parts
