Jianghan 76 Roller
- Mobile: 008613331906936
- Whatsapp: +8618358312481
- E-mail: admin@stronghoist.com
| Package | Wooden case | Weight(KG) | 1.85 | |
| Specification | Surface treatment | |||
| There’s dust cap on nozzle | Black coating | |||
| Galvanized | ||||
| Overall dimension(MM) | ||||
| Major diameter/D | Ø95 | Step height/h | 5 | |
| Minor diameter/d | Ø76 | Assemble height/La | 31.5-35.5(4) | |
| Thickness/H | 54 | Eccentricity/P | 4 | |
| Arc/R | R39 | Internal thread/M | M16 | |
| Step outside diameter/Ø | Ø40 | |||

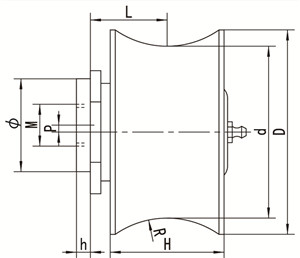

| Dimension drawing | Description | |||
 |
Used in Jianghan hoist and 650 mast section | |||
Construction Hoist Parts Guide Roller Mast Section Roller
High quality construction hoist spare parts
High quality GJJ, BAODA material hoist spare parts
