| Package | Wooden/carton case | Weight(KG) | 3.4 | |

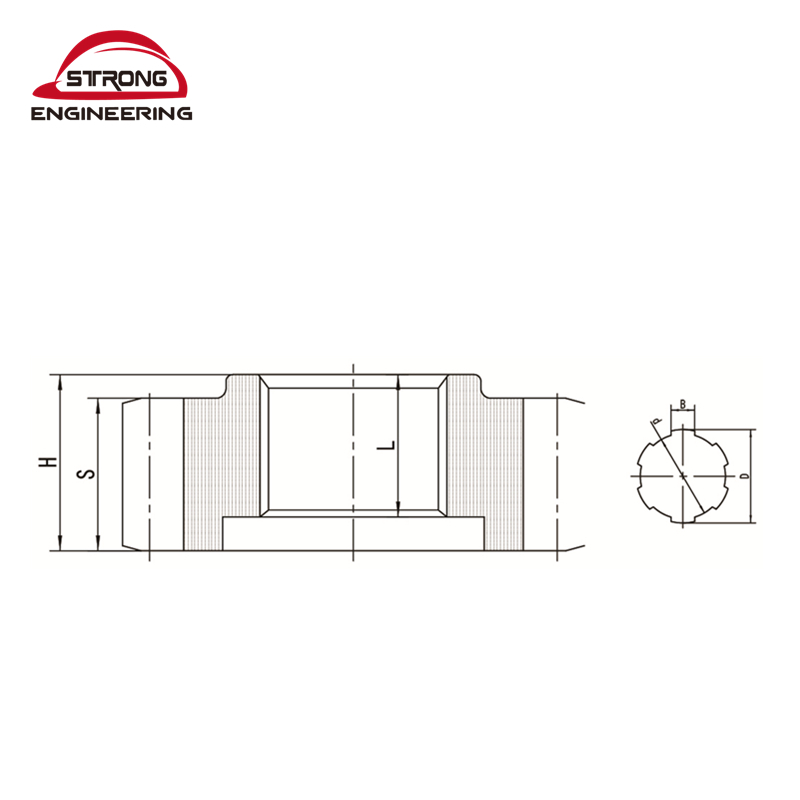

| Overall dimension(MM) | ||||
| Height/H | 50 | Common normal line/W | 37.1 | |
| Tooth thickness/S | 50 | Spline length/L | 44 | |
| Teeth number/z | 15 | Spline width/B | 7 | |
| Module/m | 8 | Spline major diameter/D | Ø56 | |
| Tooth profile angle/α | 20° | Spline minor diameter/d | Ø46 | |
| Modification coefficient/x | 0 | Spline quantity/N | 10 | |
| Description | Specification | |||
| Used in Baoda construction hoist |
1. Made of 40Cr materials 2. Medium-frequency hardening |
|||
