Xihu 63 Gear
- Mobile: 008613331906936
- Whatsapp: +8618358312481
- E-mail: admin@stronghoist.com
| Package | Wooden/carton case | Weight(KG) | 3.2 | |

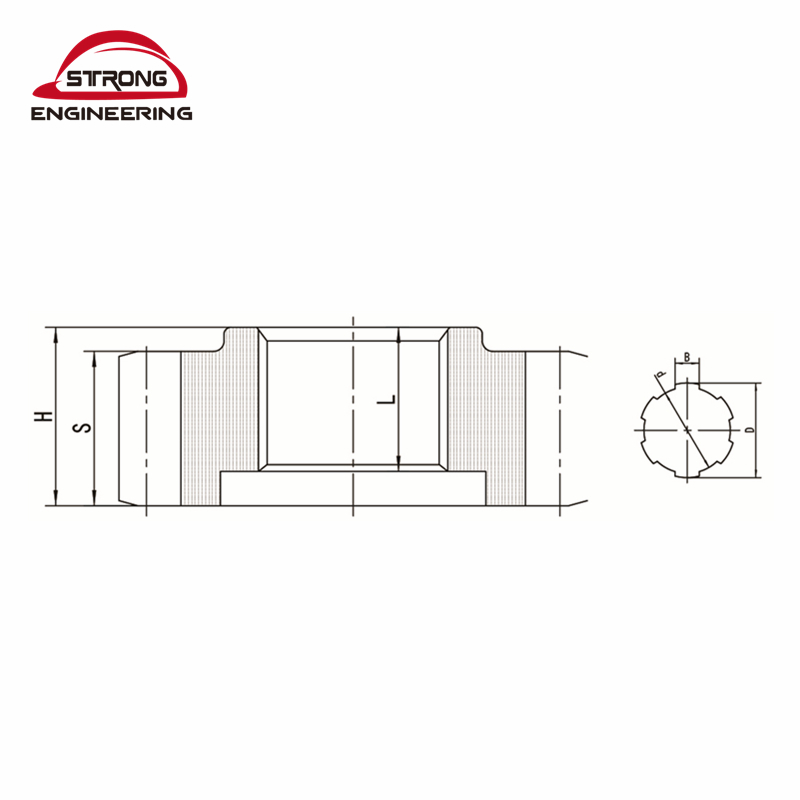

| Overall dimension(MM) | ||||
| Height/H | 63 | Common normal line/W | 37.1 | |
| Tooth thickness/S | 50 | Spline length/L | 44 | |
| Teeth number/z | 15 | Spline width/B | 14 | |
| Module/m | 8 | Spline major diameter/D | Ø55 | |
| Tooth profile angle/α | 20° | Spline minor diameter/d | Ø50 | |
| Modification coefficient/x | 0 | Spline quantity/N | 6 | |
| Description | Specification | |||
| Used in Zhejiang Construction hoist |
1.Made of 40Cr materials 2.After thermal refining and nitriding treatment |
|||
