Jinggang Nitrided Gear
Jinggang Nitrided Gear
  • Specification

Package Wooden/carton case Weight(KG) 3.4

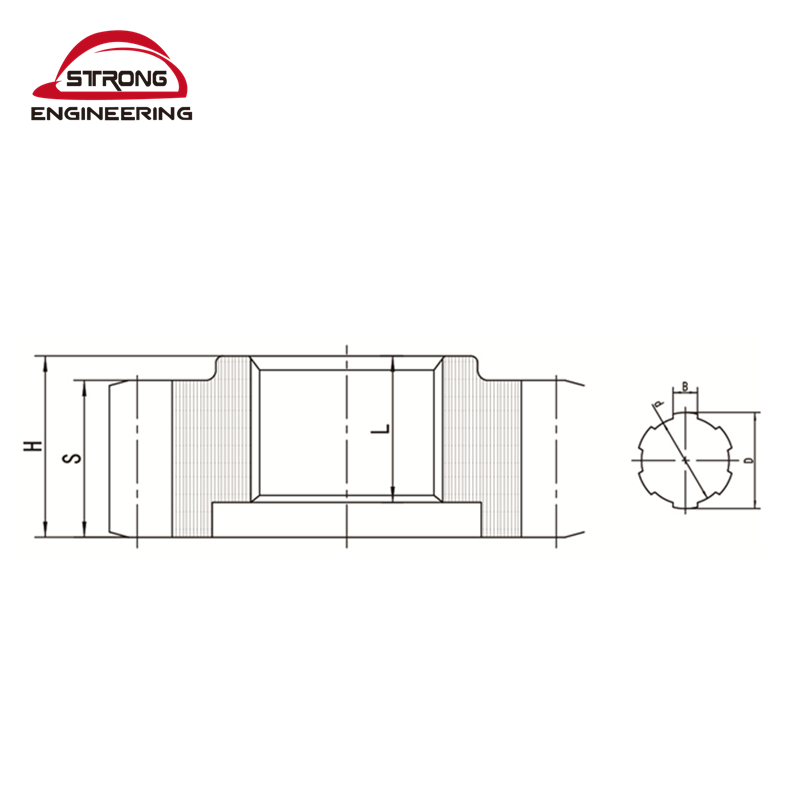

Overall dimension(MM)
Height/H 50 Common normal line/W 37.1
Tooth thickness/S 40 Spline length/L 42
Teeth number/z 15 Spline width/B 14
Module/m 8 Spline major diameter/D Ø55
Tooth profile angle/α 20° Spline minor diameter/d Ø50
Modification coefficient/x 0 Spline quantity/N 6
Description Specification
Used in GJJ construction hoist 1. Made of 40Cr materials
2. After thermal refining and nitriding treatment
